Fingerprint Access Control and Time Attendance (F20)

F20 Fingerprint Access Control and Time Attendance

  • Overview

  • Feature

  • Specification

  • Configuration

  • Download

4.3 " LCD, Touch Screen


Fingerprint capacity: 2000


Record capacity: 50,000;


Optional Fingerprint/ID Card/Password


TCP/IP, RS232/485, USB up/down

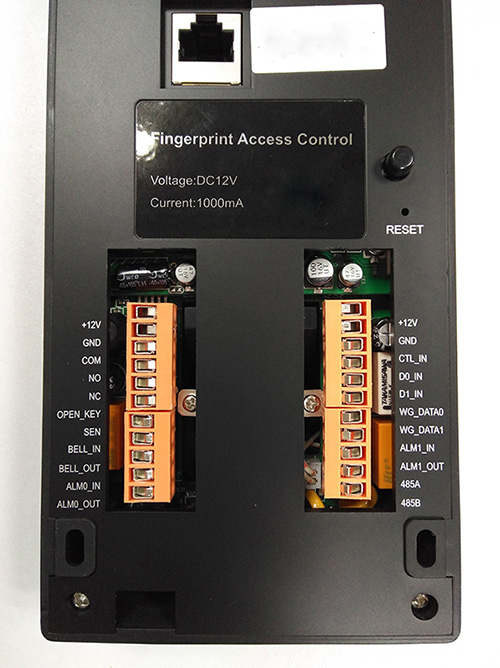

Access control interface


Suitable for time attendance, and door control system.


Casing material : Acrylonitrile Butadiene Styrene (ABS)


Dimension(L*W*H): 181(L)91(W)36(H)mm


Type of scanner: Optical


LANGUAGE: English, Simplified Chinese, Traditional Chinese


User capacity : 2000, Transaction storage: 50000


Verification method: Fingerprint (1:1 , 1:N) , password , RFID card


Identification time (sec) : Less than 1sec


Communication: RS232, RS485,TCP/IP,USB host


Baud rate (bps) : 9600, 19200, 38400, 57600, 115200


Wiegand: Wiegand OUT, Wiegand IN


EM lock driving output : DC12V-3A


Greeting voice : Voice Prompt (language can be selected)


Dispaly: LCD with 80 character and figure keypad


Music playback : N/A


Power input : N/A


USB: USB host
