Fingerprint standalone access control & time attendance (FAC18)

FAC18 Fingerprint standalone access control & time attendance

  • Overview

  • Feature

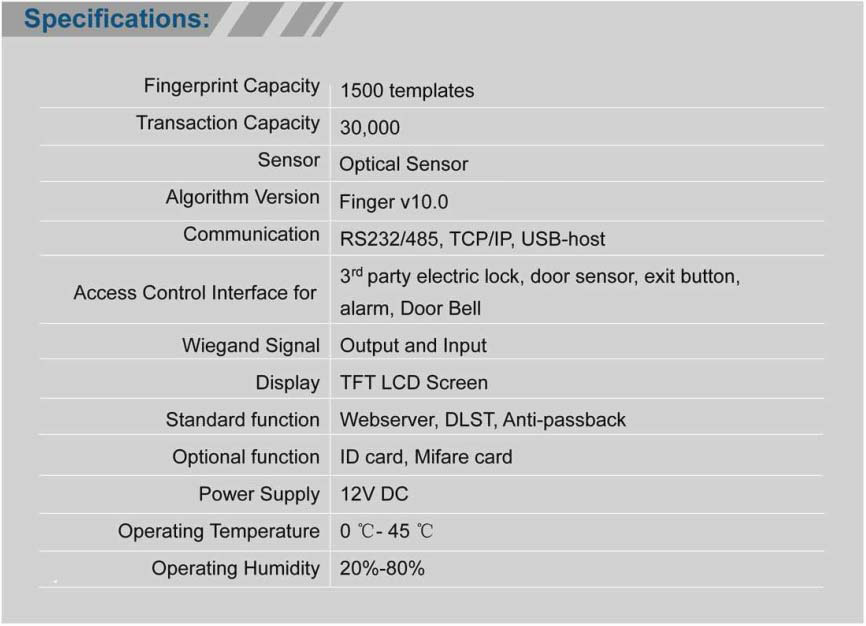

  • Specification

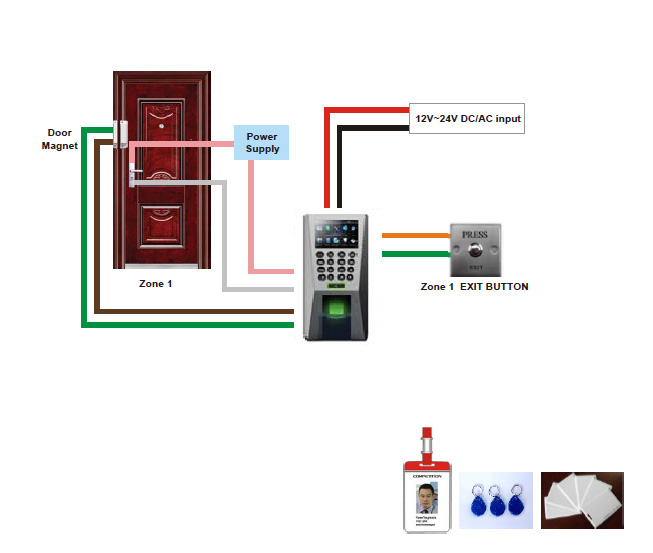

  • Configuration

  • Download


Fingerprint reader with durable and highly accurate optical sensor

1 touch a-second user recognition

Stores 1,500 templates, 5,000 cards and 30,000 transactions

Reads Fingerprint and/or Card

Optional integrated proximity card or smart card reader

Built-in Serial and Ethernet ports

Tamper-proofs switch and alarm outputs

Request-to-exit and alarm outputs

Audio-Visual indications for acceptance and rejection of valid/invalid fingers

FAC18 is an innovative biometric fingerprint reader for access control applications, offering unparalleled performance using an advanced algorithm for reliability, precision and excellent matching speed.

The FAC18 features the fastest commercial-based fingerprint matching algorithm and high-performance, high-image quality optical fingerprint sensor. The device offers the flexibility to be installed standalone or with any third party panel that supports 26-bit Wiegand. All the operation can be done on the TFT-LCD. The fingerprint image is displayed on the screen, that will guide the user to put the finger on to proper positioin and increase the recognition rate.


TCP/IP and RS232/485 are available that the device can be used in different network. TCP/IP communication
makes sure the data transmission between the device and the PC can be easily done within several seconds.
