Single Door Magnetic Lock(EL-500)

Can be used with different doors .Special anti-residual magnetism designed makes the access control automation safer and electric lock more durable.Holding force:1200lbs

  • Overview

  • Feature

  • Specification

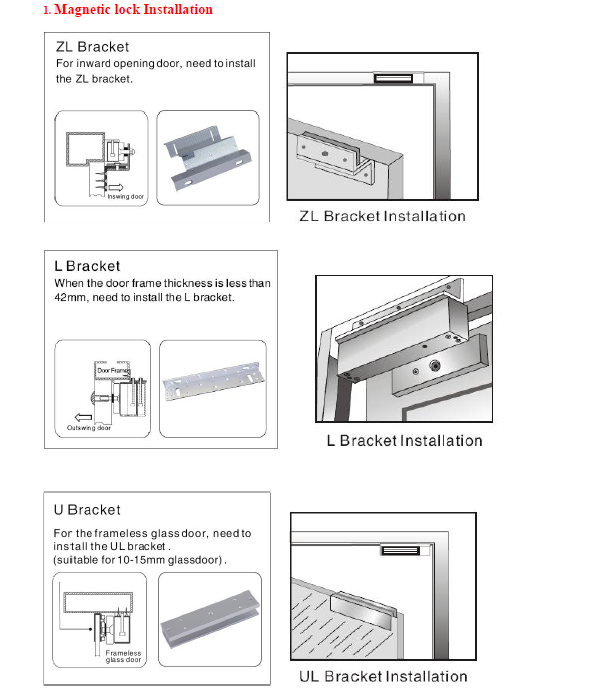

  • Configuration

  • Download

Collinear Load Test 500kg,1200pounds.


Dual Voltage 12 or 24 VDC(optional).


The Standard Voltage is 12VDC when Finished.


MOV Provides Reverse Current Protection.


Suitable For Wooden Door,Glass Door,Metal Door,Fireproof Door.


LED Indicates the Door Status.


Lock Status sensor(NO/NC/COM).


Anti-Residual Magnetism Designed.


High Strength Material,Anodized Aluminum Housing.


Design without Mechanical Failure.


Increase the holding Force,Dual Insulative Housing.


CE Certificate by European Union,MA Certificate by China Public Security Office.

N/A
Product Parameter Parameter Description
Size 265Lx71.8Wx38.8H(mm)
Armature plate 185Lx60Wx13H(mm)
Holding Force 500kg(1200Lbs)
Voltage 12 or 24VDC
Current Draw 12V/420mA or 24V/210mA
Signal Output Dry Contact,Max Rating of Contact Current 3A
LED Red indicates the door is unlock,Green indicates the door is lock
Suitable for Wooden door , Glass door ,Metal door , Fireproof door
Surface Temp ≤+20℃
Operating Temp -10~+55℃(14-131F)
Suitable Humidity 0~95%(non-condensing)
Finishes for Shell Anodized aluminum
Finishes for Magnetic Zinc
Finishes for Armature Zinc
Weight 4.5kg
