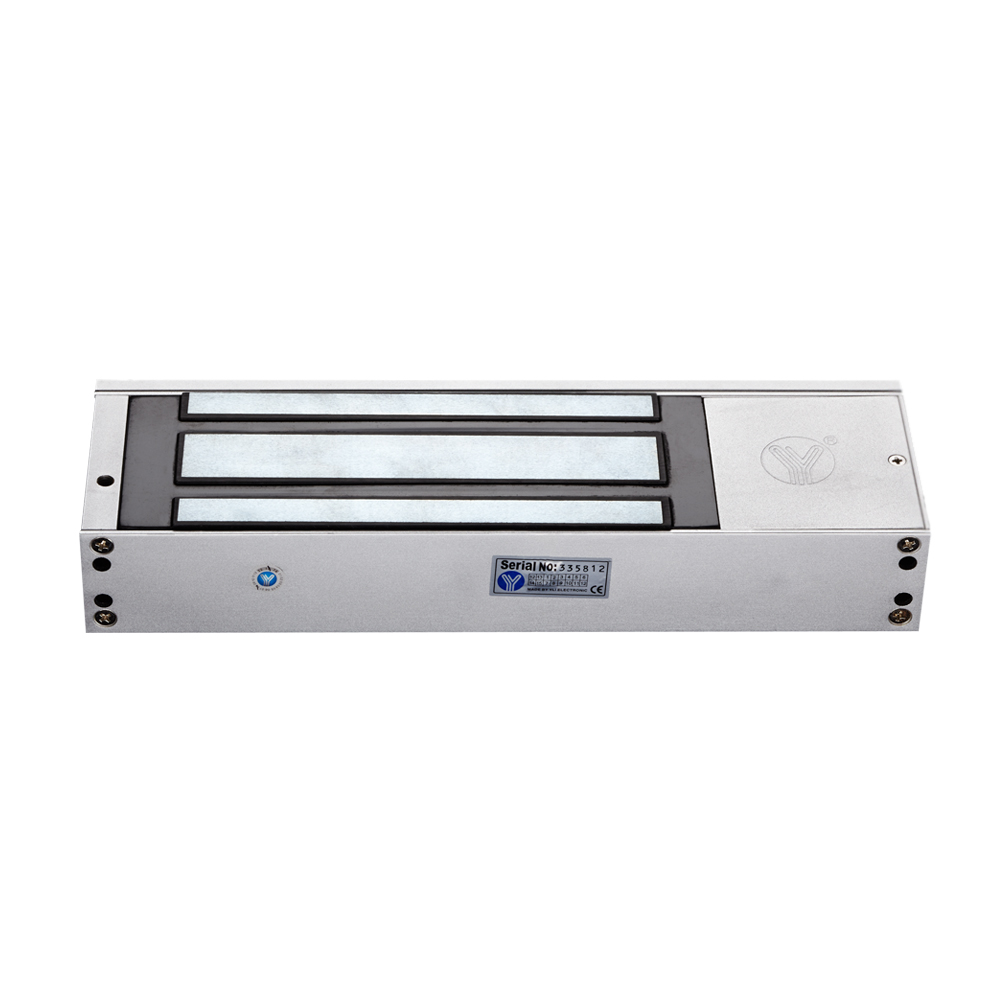

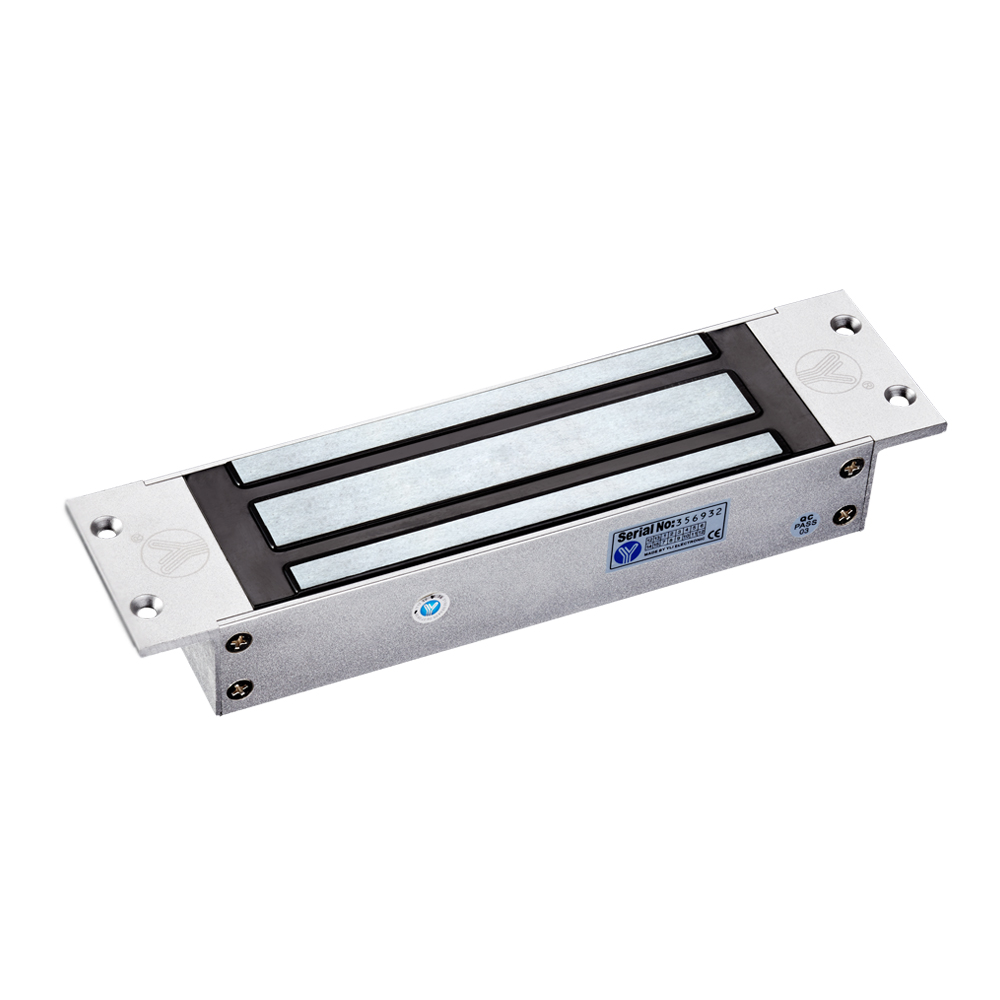

Double door electric lock with 800lbd holding force on each side. Accessories for in swing door, frameless glass door, narrow door frame door and so on are available. It is better to install on wooden door, fireproof door, metal door. 12 or 24VDC for your choice.
Collinear Load Test 350x2kg, 800x2pounds.
Dual Voltage 12 or 24 VDC(optional).
The Standard Voltage is 12VDC when Finished.
MOV Provides Reverse Current Protection.
Anti-Residual Magnetism Designed.
High Strength Material, Anodized Aluminum Housing.
Design without Mechanical Failure.
Increase the holding Force, Dual Insulative Housing.
CE Certificate by European Union, MA Certificate by China Public Security Office.
|
Product Parameter
|
Parameter Description
|
|
Lock Size
|
570Lx55Wx27.5H(mm)
|
|
Armature plate
|
190Lx45Wx11H(mm)
|
|
Holding Force
|
350kgx2(800Lbsx2)
|
|
Voltage
|
12 or 24VDC
|
|
Current Draw
|
12V/480mA*2 or 24V/240mA*2
|
|
Suitable for
|
Wooden door, Glass door, Metal door, Fireproof door
|
|
Surface Temp
|
≤+20℃
|
|
Operating Temp
|
-10～+55℃(14-131F)
|
|
Suitable Humidity
|
0~95%(non-condensing)
|
|
Finishes for Shell
|
Anodized aluminum
|
|
Finishes for Magnetic
|
Zinc
|
|
Finishes for Armature
|
Zinc
|
|
Weight:
|
5.4kg
|
