Electric Cabinet Lock (CL-301)

CL-301 Electric Cabinet Lock is designed to electronically secure cabinets and drawers.

  • Overview

  • Feature

  • Specification

  • Configuration

  • Download

Equipment Design


Stable Performance

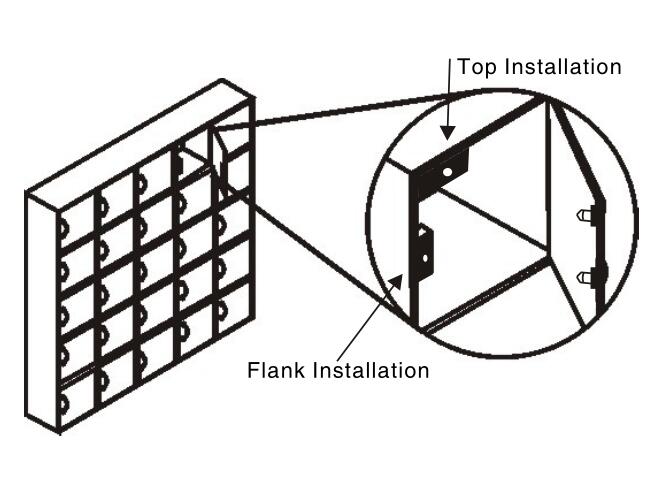

Simple Installation

Suitable for File cabinet,Storage cabinet,Public cloak room


Fail Secure: Locked when power off

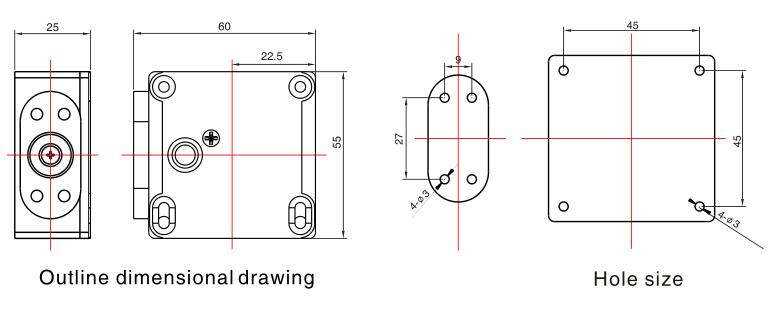

Size: 55Lx55Wx25H(mm)


Pin Length: 18mm


Pin Diameter: 7mm


Voltage:12VDC


Current: 320mA


Weight: 0.1kg


Suitable for File cabinet,Storage cabinet,Public cloak room
