Wireless online Zigbee hotel lock (L527W )

Wireless hotel lock is an advanced product which is designed for large hotel and office building, inherits all advantages of networked lock, work out the troublesome of networked lock cabling, making it easier to build up wireless lock network.

  • Overview

  • Feature

  • Specification

  • Configuration

  • Download

Materials: stainless steel

color: silver/golden

Surface treatment: Stainless steel wire drawing +ABS plastic

Mortise: ANSI 5 Latch, P2S P2L

Card capacity: 150; cards: mifare

Frequency: 2.4G (Zigbee), wireless

Battery: 4 AA 1.5V alkaline battery
Wireless hotel lock is an advanced product which is designed for large hotel and office building, inherits all advantages of networked lock, work out the troublesome of networked lock cabling, making it easier to build up wireless lock network.

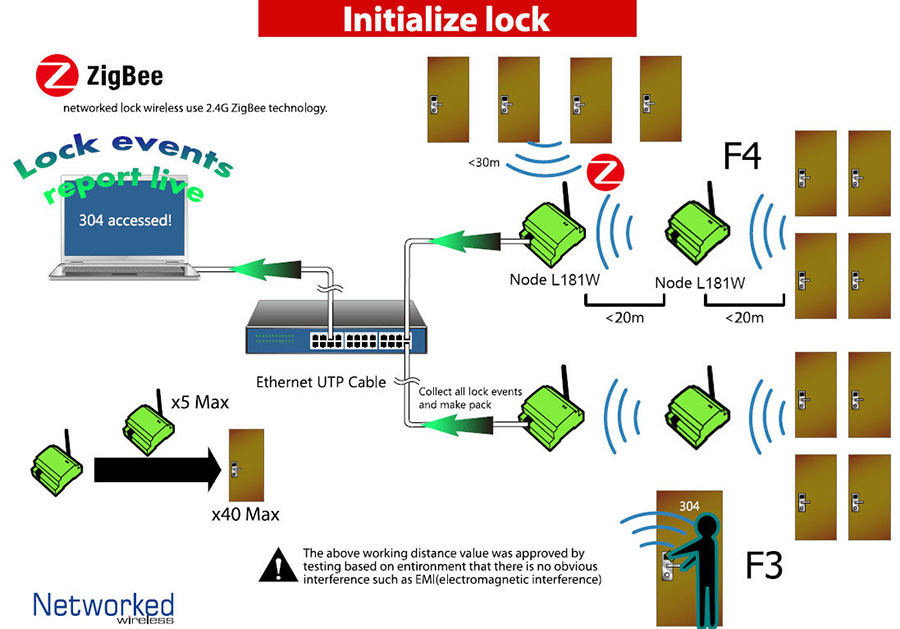

The basic feature and networked feature coincide with other networked lock (TCP/IP, RS485): through front desk, manager can download data to wireless lock, remotely control locks, real time monitor the lock status; when open the door PC can instantly receive the unlocking records, etc...


Materials Stainless steel
Surface Treatment Stainless steel wire drawing + ABS plastic
Color Silver (Golden Optional)
Mortise ANSI 5 Latch, P2S P2L
Card type ISO14443 TYPE A(Mifare‐1 S50,S70), 13.56MHz
Way of checking card Electromagnetic induction
Read distance MAX 5CM
Card Capacity 150 cards
Record Capacity 250 records
Battery 4 AA 1.5V Alkaline battery
Working Current <300mA
Standby average current <82uA
Low Voltage Alarm 4.8V
Communication Tech. 2.4G Zigbee
Communication Distance(Radius) Max 30 m in empty space (8cm aerial )
Communication Power Receive 27mA; transmit 25mA

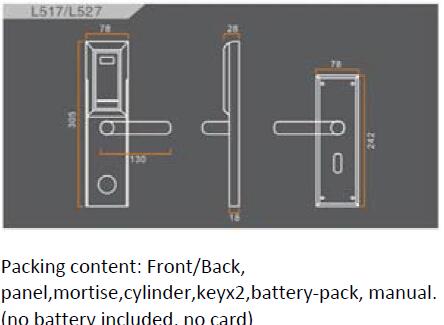

Dimension 305*78*28 (mm)
Work Temperature ‐10~60℃
Work Humidity 15~85%RH
