USB Keycard Encoder (L128‐M)

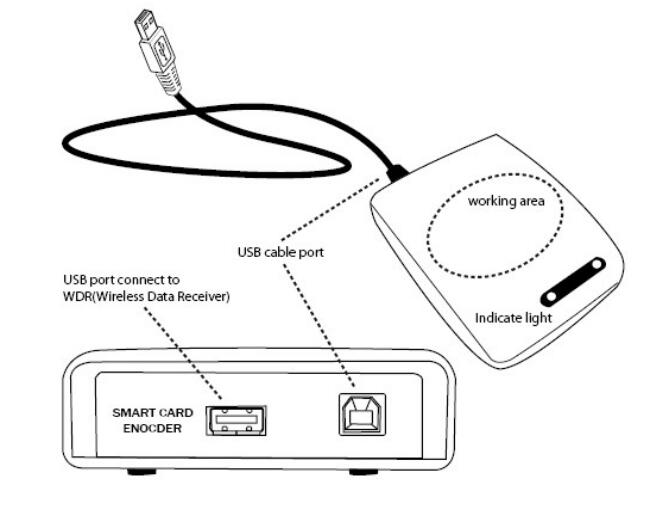

L128‐M USB keycard encoder is one device to work in hotel lock system.

  • Overview

  • Feature

  • Specification

  • Configuration

  • Download

1. Communication: USB 2.0 (with Computer)


2. Power Supply: 5V ( Powered by USB)


3. Card Type: 1K M1 S50 Card, 13.56MHZ


4. Software: Hotel Lock Software Required

L128‐M USB keycard encoder is one device to work in hotel lock system.


It reads data from M1 and write data to M1 keycard, just put the keycard on the encoder’s induction area, you can do the operations. It’s convenient and efficient!

1. Communication: USB 2.0 (with Computer)


2. Power Supply: 5V ( Powered by USB)


3. Working Current: <120mA


4. Reading Distance: <6cm


5. Card Type: 1K M1 S50 Card, 13.56MHZ


6. Software: Hotel Lock Software Required


7. Weight: 135g


8. Color: White


9. Dimension: 120x95x28mm


10. Work Temperature: 0~70℃


11. Work Humidity: 15~85%RH


12. Software: Hotel lock system software requested
