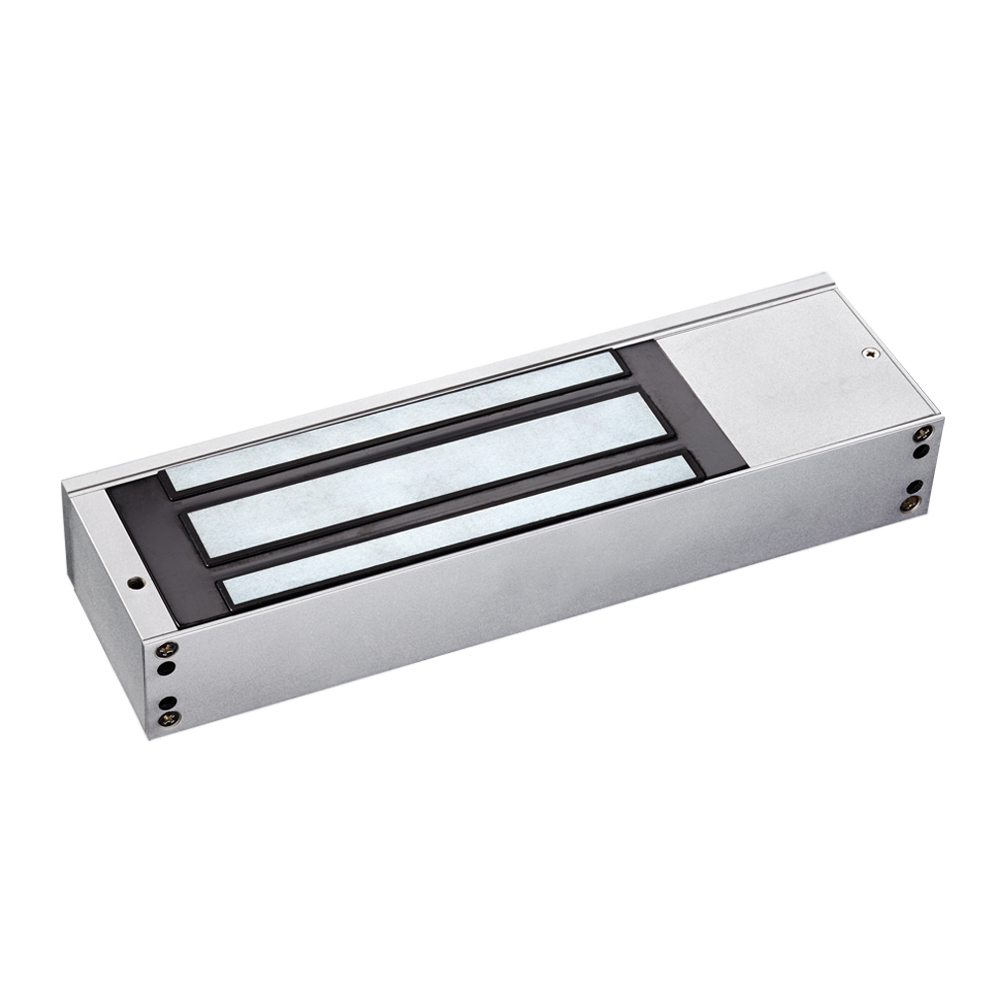

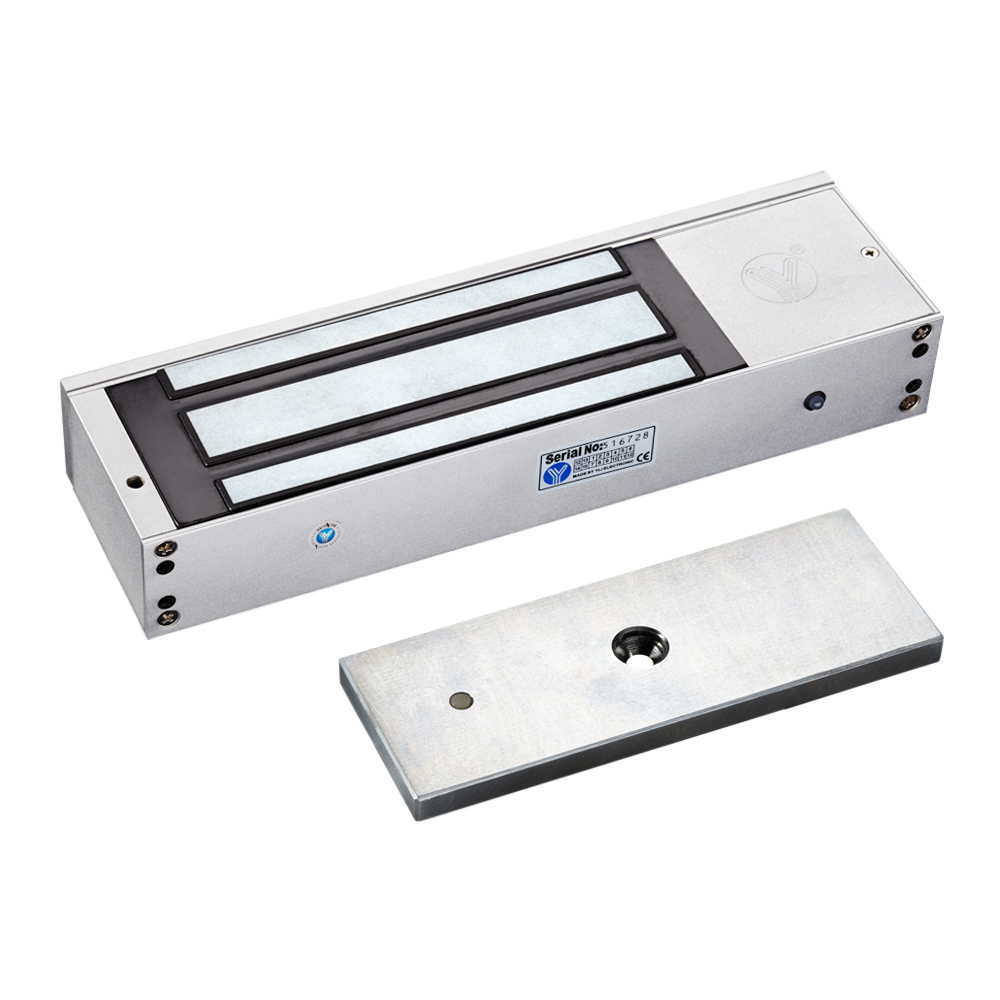

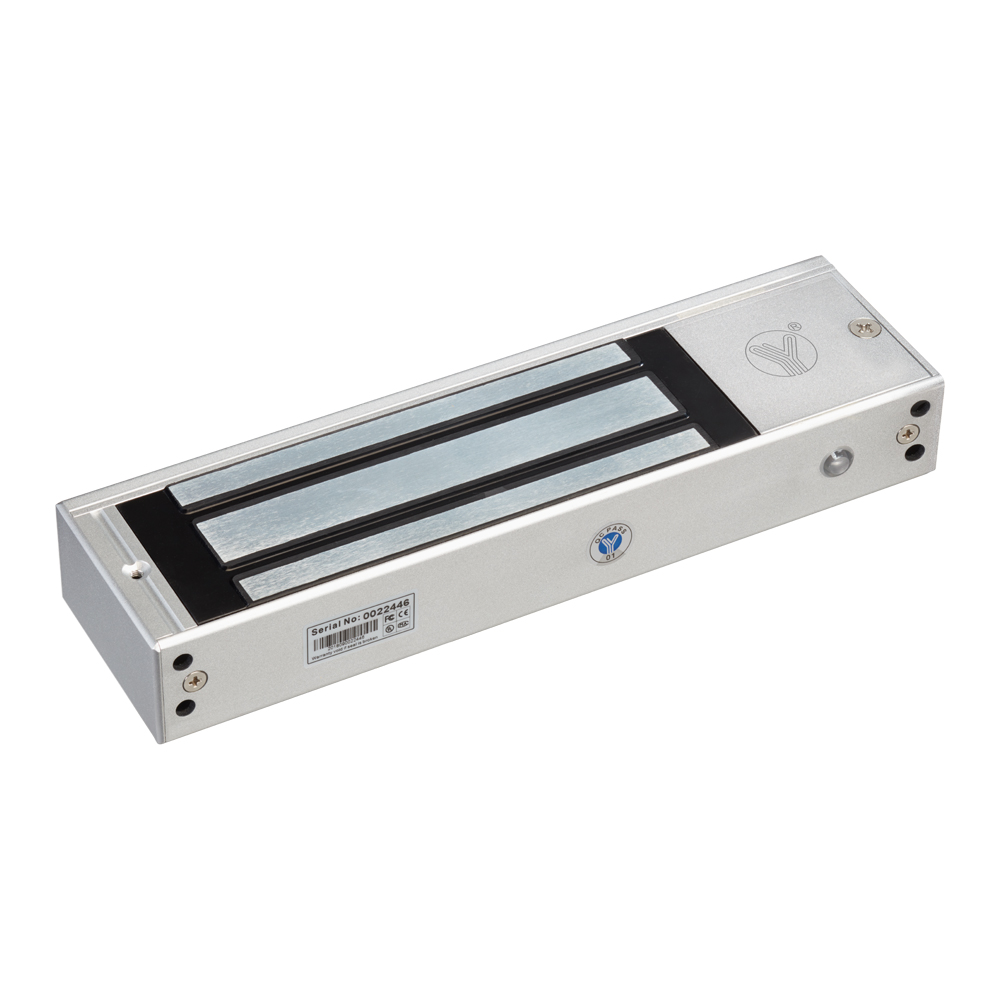

Single Door Magnetic Lock(EL-280)

Glass door, wooden door, fireproof door, sliding door and metal door can be fixed with single door magnetic lock. 600lbs is the holding force. Aluminum is the main material. Special anti-residual magnetism designed makes the access control automation safer and electric lock more durable.

  • Overview

  • Feature

  • Specification

  • Configuration

  • Download

Collinear Load Test 280kg,600pounds.


Dual Voltage 12 or 24 VDC(optional).


The Standard Voltage is 12VDC when Finished.


MOV Provides Reverse Current Protection.


Anti-Residual Magnetism Designed.


High Strength Material,Anodized Aluminum Housing.


Design without Mechanical Failure.


Increase the holding Force,Dual Insulative Housing.


CE Certificate by European Union,MA Certificate by China Public Security Office.

N/A
Product Parameter Parameter Description
Size 250Lx48.5Wx25H(mm)
Armature Plate Dimension 180Lx38Wx11H(mm)
Holding Force 280kg(600Lbs)
Input Voltage 12 or 24VDC
Current 12V/500mA or 24V/250mA
Suitable Wooden door , Glass door ,Metal door , Fireproof door
Surface Temp ≤+20℃
Operating Temp  -10~+55℃(14-131F)
Humidity  0~90%(non-condensing)
Cover Finish Anodized aluminum
Lock Finish Zinc
Armature Plate Finish Zinc
Weight 2.1kg
