European Narrow-type and Adjustable Electric Strike EL-134NO(L)

EL-134NO(L) is designed for the glass door without frame. The products of our company is variety and full-equipped. The special design is that the spring bolt can be adjusted to be open all the time.

  • Overview

  • Feature

  • Specification

  • Configuration

  • Download

Holding 300kg.

Special design,easy to adjust the distance of the Lock-tongue.

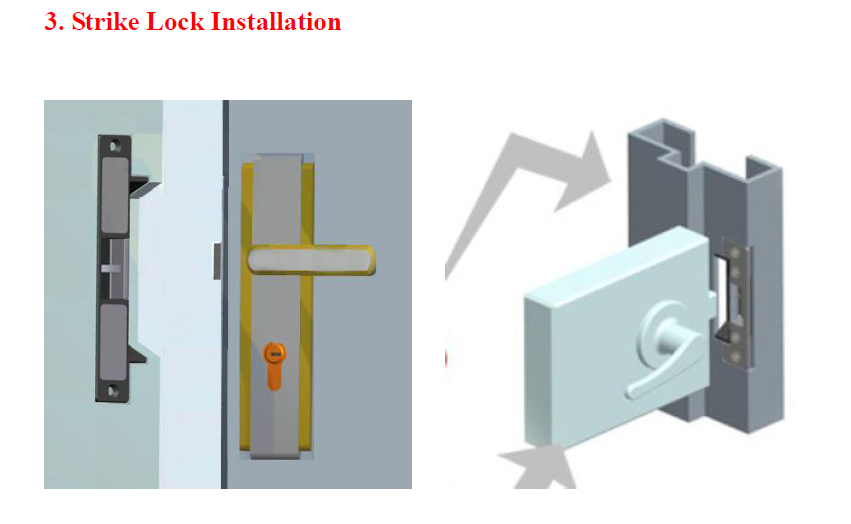

Designed for Metal Frame drill a hole,then install it directly.

Testing to 1000000 cycles.

High-Temperature Painted,Duable and Beatiful Artical.

CE Certificate by European Union, MACertificate by China Public Security office.
N/A
Product Parameter Parameter Description
Lock Size  250Lx25Wx31.5H(mm)
Strike Structure  Zinc die-casting
Holding Stength  300kg
Voltage  DC12V
Current  650mA
Special Design  Adjust Lock-tongue to NO style
Suitable For  Narrow Wooden Door,Narrow Metal Door
Surface Temperature  Within +20℃
Suitable Temperature  -10~+55℃(14-131F)
Operating Humidity  0~90%(non-condensing)
Face plate Housing  Surface by coating nickel
Function  Built-out MOV
Optional Accessories EL-308
Weight  0.35kg

    New product
