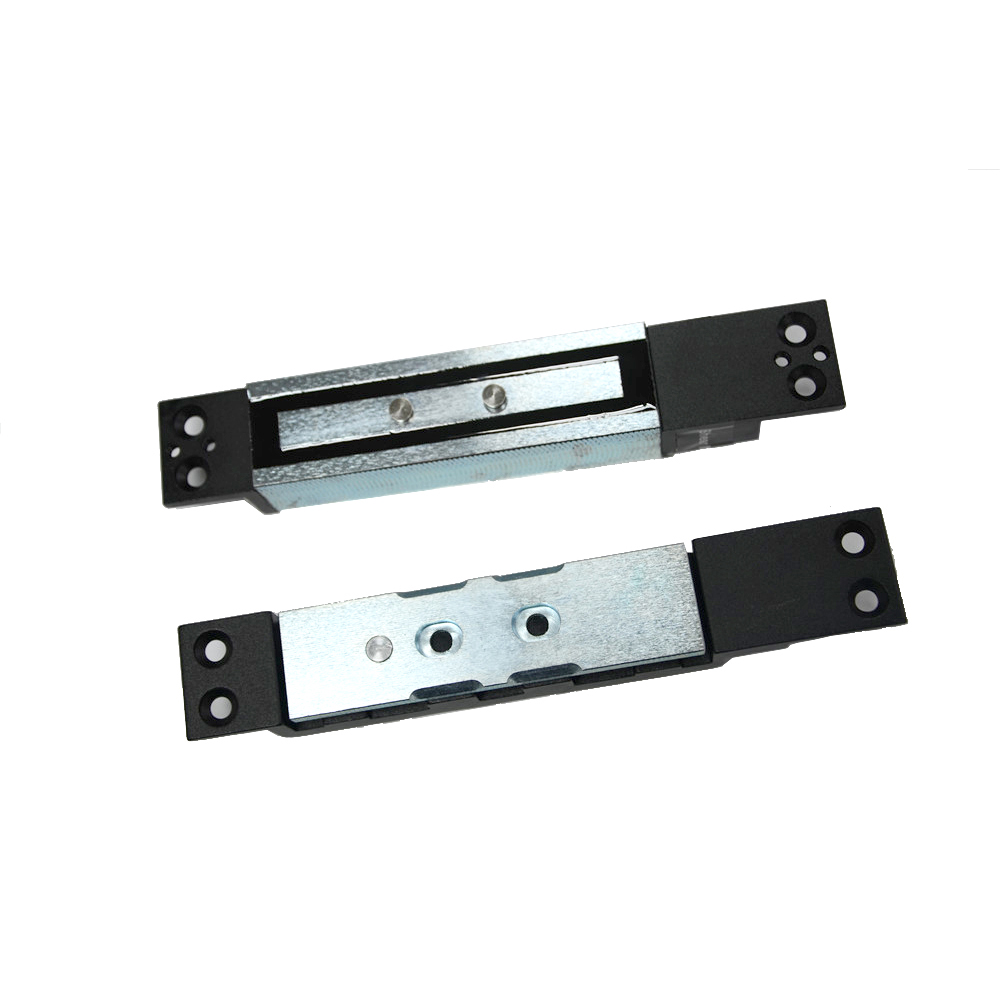

YM-280CAM Single Door Magnetic Lock with Camera

YM-280CAM Single Door Magnetic Lock with Camera

  • Overview

  • Feature

  • Specification

  • Configuration

  • Download

This is a very special Single Door Magnetic Lock because of its camera, which can be installed on glass door, wooden door, fireproof door, sliding door and metal door .Inbuilt time delay mode and can set up 0,3,6,9sec. Card reader is compatible with it.
Collinear Load Test 280kgx2, 600poundsx2.
Dual Voltage 12 or 24 VDC(optional).
The Standard Voltage is 12VDC when Finished.
MOV Provides Reverse Current Protection.
Anti-Residual Magnetism Designed.
High Strength Material, Anodized Aluminum Housing.
Design without Mechanical Failure.
Increase the holding Force, Dual Insulative Housing.
CE Certificate by European Union, MA Certificate by China Public Security Office.
Product Parameter Parameter Description
Size 280Lx48Wx26.5H(mm)
Armature Plate Dimension 180Lx38Wx11H(mm)
Holding Force 280kg(600Lbs)
Input Voltage 12 or 24VDC
Current 12V/600mA or 24V/300mA
Camera angle 167
