Basic Wall Mount Door Holder (DH-601)

DH-601 is a standard type wall mount door holder

  • Overview

  • Feature

  • Specification

  • Configuration

  • Download

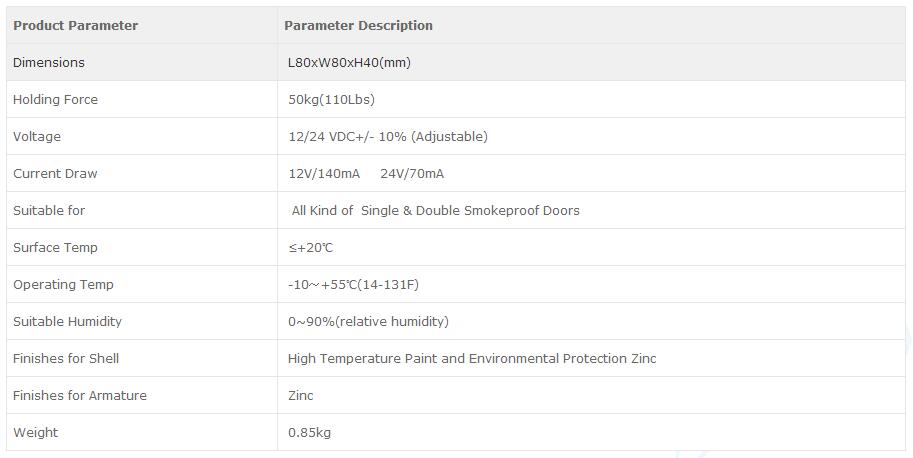

Dimensions L80xW80xH40(mm)


Holding Force 50kg(110Lbs)


Voltage DC24V+10% (Adjustment)


Suitable for All Kind of Single & Double Smokeproof Doors

DH-601 is a standard type wall mount door holder .which adopts low power consumption, that makes it more environment friendly and more durable.

The Holding Force(Collinear Load) is 50kg(110Lbs)Professional anti-residual magnetism design ensures highest security.

It will release automatically the fire door when fire alarms. It also contains build-out release button for testing and build-in MOV which reverse current protection.

N/A
