Single Door Magnetic Lock(mortise mount) EL-280M

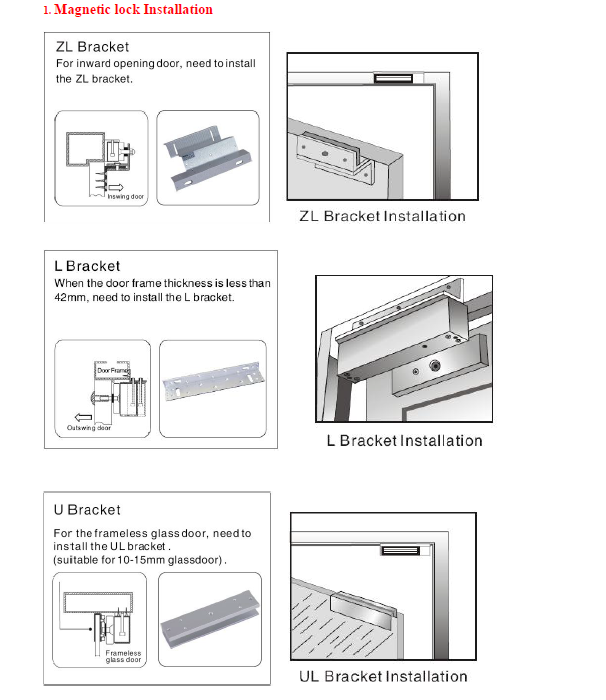

EL-280M single door electric lock is for glass door, wooden door, fireproof door, metal door. Mortise mount and easy to install . Accessories for in swing door,frameless glass door,narrow door frame door and so on are available. Lastly, holding force is 600lbs .

  • Overview

  • Feature

  • Specification

  • Configuration

  • Download

Collinear Load Test 280kg,600pounds.

Dual Voltage 12 or 24 VDC(optional).

The Standard Voltage is 12VDC when Finished.

MOV Provides Reverse Current Protection.

Anti-Residual Magnetism Designed.

High Strength Material,Anodized Aluminum Housing.

Design without Mechanical Failure.

Increase the holding Force,Dual Insulative Housing.
N/A
Product Parameter Parameter Description
Size 231.6Lx41.6Wx24.5H(mm)
Armature Plate Dimension 180Lx38Wx11H(mm)
Holding Force 280kg(600Lbs)
Input Voltage 12 or 24VDC
Current 12V/500mA or 24V/250mA
Suitable Wooden door , Glass door ,Metal door , Fireproof door
Surface Temp ≤+20℃
Operating Temp  -10~+55℃(14-131F)
Humidity  0~90%(non-condensing)
Cover Finish Anodized aluminum
Lock Finish Zinc
Armature Plate Finish Zinc
Weight 2.1kg
