standalone keypad door lock (L815-MF )

L815-MF standalone door lock

  • Overview

  • Feature

  • Specification

  • Configuration

  • Download

Stainless Steel


Mifare card + Keypad + Keys

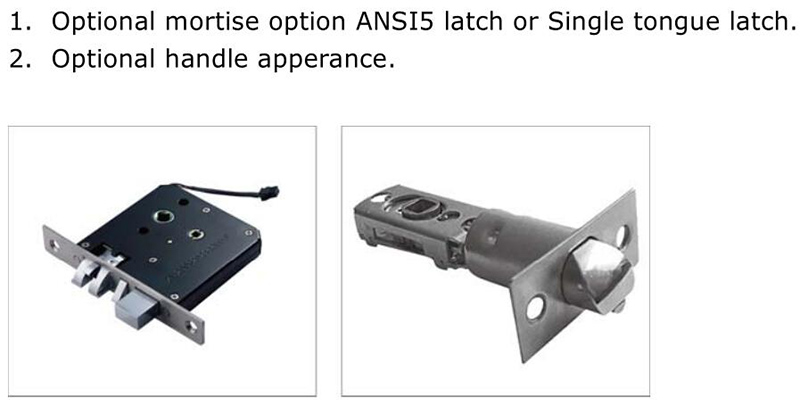

Optional ANSI 5 or single tongue moritse


Optional handle color


Sleeping mode to prevent illegal attempt


Low battery alert; 4x AA Alkaline battery


Panel Size: 156.7*69.3mm


Weight: 3.0kgs

N/A

Mortise: Single Tongue and ANSI 5 latches


Handle Color: Silver or Black


Card Type: Mifare Keycard (Optional TM90 Card)


Digit Numer: 12 digits


Unlock Methods: Mechanical key/card/digital


Card user capacity: 200pcs (digital and card)


Low voltage: 4.8V-5.0V


Static Current: <15uA


Dynamic Current: <200mA


Working Temperature: -20℃~55℃


Storage Temperature: -30℃~70℃


Working Voltage: 4pcs AA 1.5V alkaline battery


Door Thickness: 35-45mm, 45-55mm, 55-65mm


Static Pwower Consumption: <15uA
